Ultrasonat 810

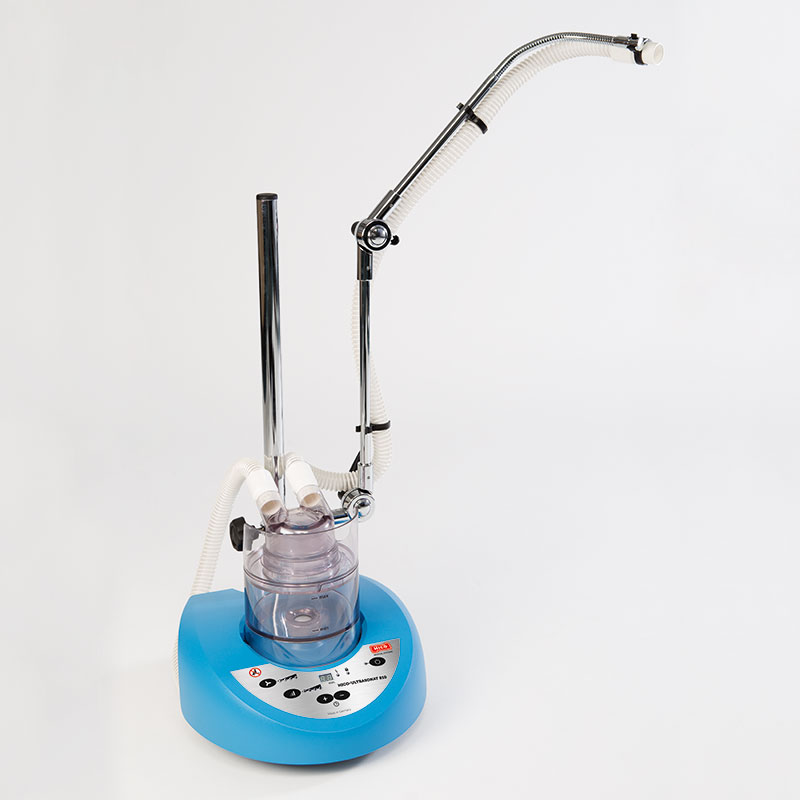

HICO-ULTRASONAT 810

HICO-ULTRASONAT 810 is a device for the ultrasonic nebulization of water and medicine, meeting the inhalation therapy demands of hospitals, nursing homes and home care.

Properties

REF 390001

  • Nebulization of micro-particles in the range of 0.5 to 6.0 µm
  • Nebulization of very small quantities of medication
  • Nebulization intensity and time adjustable up to 99 min.
  • Nebulization capacity of up to 4.5 ml/min.
  • Large nebulizer chamber of 500 ml
  • Permanent nebulizing system - up to 8 hours (optional)
  • Heatable aerosol hose for heating the nebulized liquid (optional)
  • Optional wall bracket or castor stand to ensure easy and safe operation

Areas of application

  • Surgery
  • Intensive care
  • Internal medicine
  • Pediatrics
  • Ear, nose, throat (ENT)
  • Balneology

Technical Data

REF

390001

Nominal voltage

230 VAC 50 Hz / 115 VAC 60 Hz / 220 VAC 60 Hz

Power input

approx. 85 VA

Current consumption

approx. 0.4 A – 0.8 A

Nebulization capacity

approx. 4.5 ml/min (max.)

HF power output

approx. 32 W

Transducer frequency

up to approx. 1.7 MHz

Particle size

approx. 0.5 – 6 µm

Aerosol temperature

max. 48 °C

Water temperature in the chamber

max. 44 °C

Ambient temperature

10 – 30 °C

Relative humidity

approx. 30 – 70 %

Transport / storage temperature

3 – 60 °C

Air pressure

700 – 1060 mbar

Class / type of protection

(IEC 60601-1)

I / B

IP protection class (IEC 60529)

IP X1 (drip-proof)

Risk class (93/42/EEC)

II a

Dimensions W x H x D

30 x 25 x 30 cm

Chamber capacity

max. 600 ml

Weight

approx. 4.5 kg (standard set-up)

Noise emission

approx. 30 dB(A)

UMDNS code

15-783

Accessories

REF 390011

REF 392900

Castor stands and brackets

5-castor stand, consisting of 5 castors and support bar Ø 25 x 600 mm REF 390011

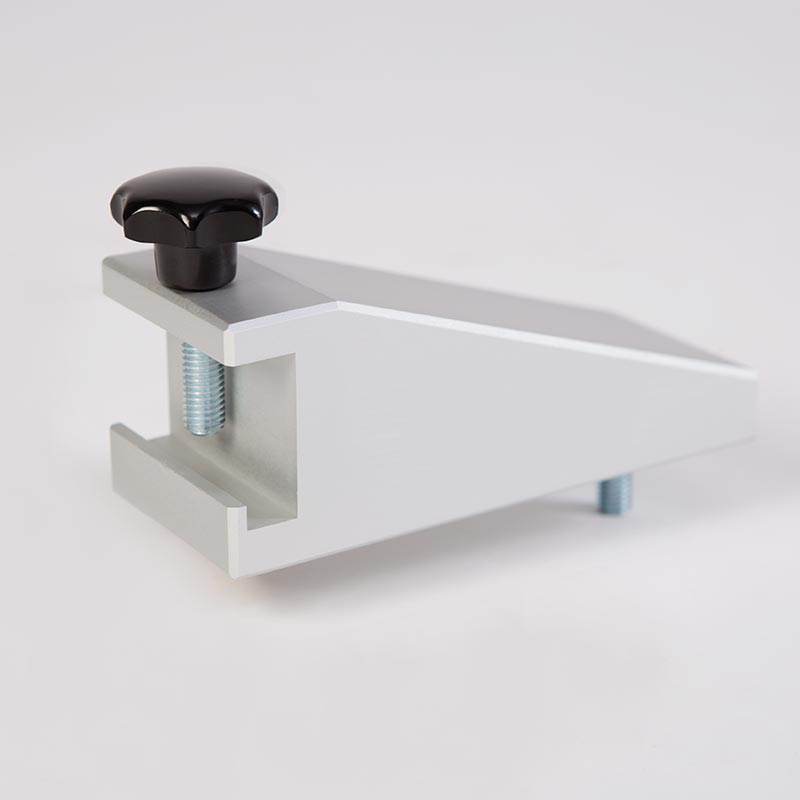

Wall bracket, system for fastening to the wall rail REF 392900

REF 390010

Permanent nebulizing system

Refill system, consisting of 1-liter glass bottle, bottle hanger and bottle holder, star screw and level regulator REF 390010

REF 383502

REF 383109

Aerosol hoses

Heatable aerosol hose, 100 cm, heatable up to 43 °C, autoclavable REF 383502

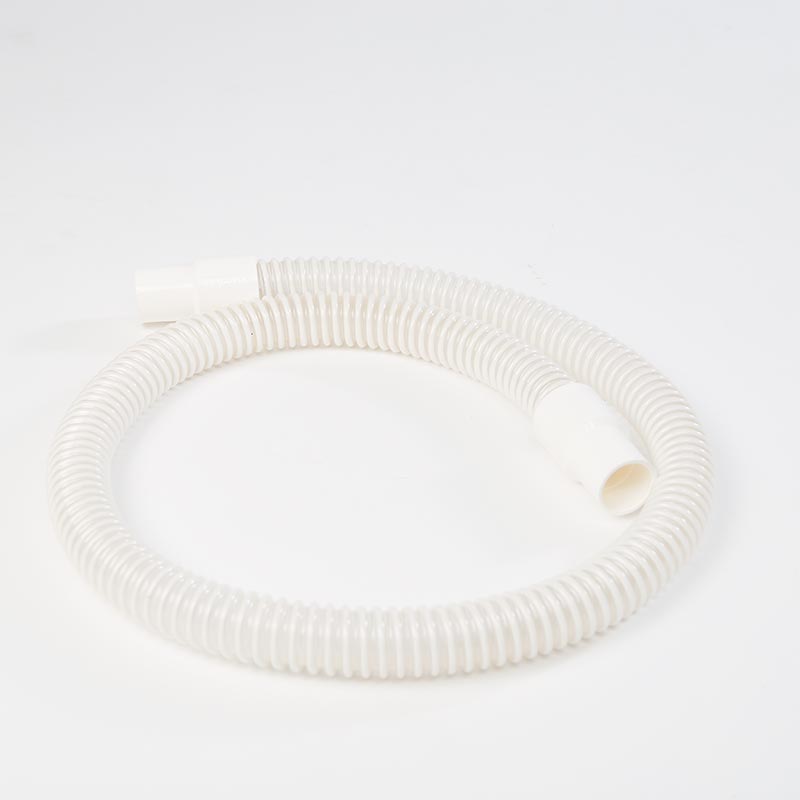

Aerosol hose, 100 cm long ventilation hose REF 383109

REF 380317

REF 380318

Face masks

Face mask for adults REF 380317
Face mask for children REF 380318

REF 370002

REF 370024

Mouthpieces

Mouthpiece for multiple use, made of SILKOMED® REF 370002
Mouthpiece for single use REF 370024

REF 382309

REF 383110

Filter

Bacteria filter, carton with 50 single packs REF 383110
Primary air filter, minimum order quantity 50 filters REF 382309

REF 382727

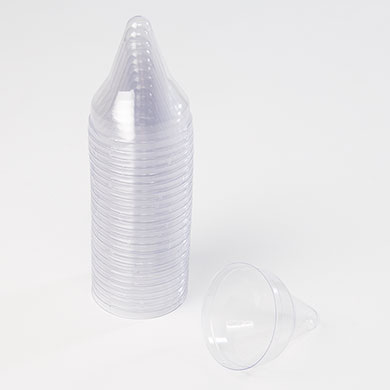

Cone cups for drug nebulization

Disposable cone cups for nebulizing very small amounts, 100 cups per packaging unit REF 382727
